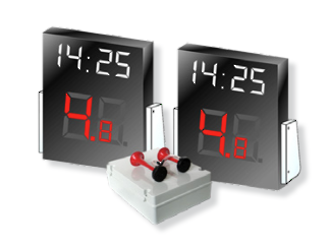

CALYPSO LED Shot Clocks
|
- Powerful sound
- Wide legs for maximum stability
- Big LED digits for excellent visibility
- DC-DC converter for stable luminosity
- Battery-powered for maximum security
| CALYPSO | Shot clocks with game clock (see kit contents in separate tab) |
| Dimensions : | 920 x 750 x 200 mm (per display) |
| Weight : | 5.8 Kg (per display) |
| Digits height : | Shot time : 2x 24 cm |
| Viewing angle : | 110° |
| Power supply : | 24 VDC supplied by the power + horn unit |
| Display texts : | shot time: 8 8. |
| Connections : | Power + 2x data Harting 5pMT |
| Protection : | IP54 |
| Certifications: |  and  RoHS compliant |
| Dimensions : | 380 x 200 x 310 mm |
| Weight : | 6.2 Kg |
| Power supply : | 300 VA |
| Sound power : | 114 dB (pneumatic horn) |
| Certifications: | and RoHS compliant |

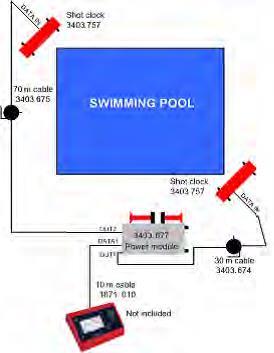

- 2x LED Shot clock 30-seconds
- 1x Power module with horn and battery
- 1x 30 m cable on winder
- 1x 70 m cable on winder
- connection cable to Calypso WP controller
- Start/Stop button for WP controller
- AC Power cable

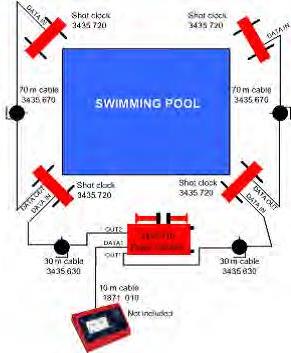

- 4x LED Shot clock 30-seconds
- 1x Power module with horn and battery
- 2x 30 m cable on winder
- 2x 70 m cable on winder
- connection cable to Calypso WP controller
- Start/Stop button for WP controller
- AC Power cable
Shot clock features a 2 digits display for the 30 seconds shot time and a 4 digits display for game time. Both displays can count 1/10s for game time (on the last minute) and shot time (on the last 5 seconds).
As soon as the clock reaches zero an acoustic signal is emitted.
The shot clock is powered by an external power module supplying 24 VDC.
The angled, wide based design makes the display extremely stable, and the 24 cm height of the LED digits ensures excellent visibility for the players and spectators alike
