01424

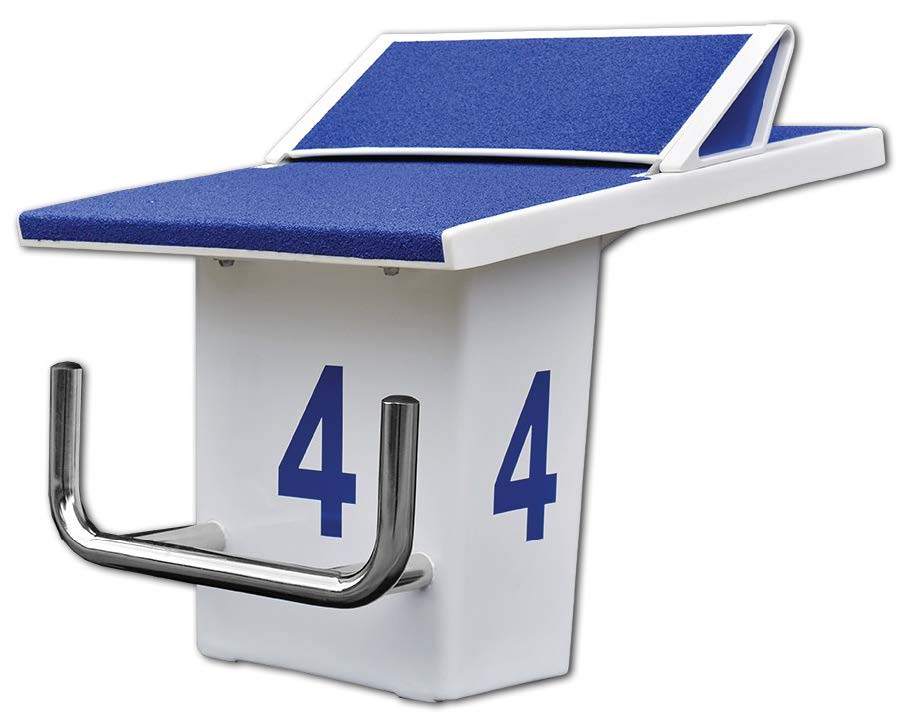

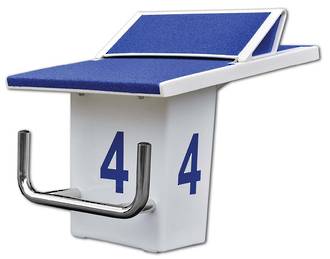

OSB14 Swimming Starting Blocks

Enquire

The OSB14 is a part of the new generation of starting block for swimming.

It replaces the OSB9 and includes an inclined foot rest, which allows a significant improvement of thrust when the swimmer starts. This proven technology has been adapted to the new starting block.

The OSB14 is designed in fiberglass to ensure the platform robustness while optimizing its weight (28kg).

The platform is covered with an anti-skid surface providing comfort and safety to the swimmer.

With a smaller base (200x320mm) than the OSB11, this starting block can be installed in pools with minimal floor space. The mounting system is similar as for the OSB9, allowing an easier replacement of these units, no longer produced to this day, by the new starting block OSB14.

A door at the back of the block allows easy access to the interior to connect the cabling.

  • Top Features
  • Specifications
  • Available OSB14 Sets
  • Options
  • Options
  • Adjustable footrest
  • Small footprint
  • FINA compliance
  • Anti-skid surface

Two versions of the OSB14 are available:

  • Standard version
  • RBD-version (Relay Break Detection)

Both versions have the same base and top, providing an affordable and evolutive solution : a basic system can be upgraded later to a RBD system.

The footrest can be freely adjusted in length, or disassembled with standard tools.

In a fixed cable installation, the various items of the timing system are connected into a lane deck plate which is installed under the center of each block. This offers physical protection for the cables, connections and speaker.

An additional start deck plate can be located next to the position of the acoustic start device.

Article number:   3454.707 (with RBD)


                           3454.708 (simple)

Overall size:       739 x 518 mm (length x width)

Top plate size:    740 x 518 mm (length x width)

Height:                max.655 mm

Material:              Fiberglass

Weight:                28 kg

RBD contacts:     N.O. , max. 100 mA / 12 V

RBD connection: Cable with 2x banana plugs
  with RBD simple
set of 6: 3454.926 3454.936
set of 8: 3454.928 3454.938
set of 10: 3454.930 3454.940
Internal loudspeakers :
3399.600 (for fixed wiring, with 2x banana plugs)
3399.610 (for mobile wiring, with Tu4pM connector)
loudspeakers
Deck plate sets :
3274.926 : Deck plate set for 6 lanes swimming pool
3274.928 : Deck plate set for 8 lanes swimming pool
3274.930 : Deck plate set for 10 lanes swimming pool
3274.635 : Start deck plate set (for the acoustic start device)
deck plate sets
Dynamometer :
9051.1015 : Dynamometer (for calibration of the RBD)
Download a information Sheet.pdfdownload-628
