01423

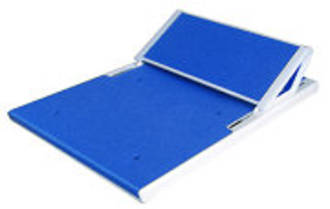

OSB12 Starting Block top

Enquire
OSB12 presents a powerful new patented feature, revolutionising the way the swimmers start from their blocks. Diving from the starting block with the body propelled by the knee at a 90° angle drastically increases the explosiveness of the start. Physical tests undertaken by top level swimmers showed faster races versus a standard block.

OSB12 Starting Blocks have been tested by world-class swimmers, who have helped to specify the optimum angles of both the platform and the footrest for racing starts. Design research also applied to the top surfaces, very comfortable yet rough enough to guarantee the swimmer a feeling of total security. The length of the platform is extended to 74 cm to accommodate the new styles of start.

OSB12 can be mounted or adapted to almost any type of existing starting blocks.

  • TOP FEATURES
  • OSB12 VERSIONS
  • SPECIFICATIONS
  • AVAILABLE SETS
  • BROCHURE
  • Adjustable footrest
  • FINA compliance
  • Anti-slip top
  • Extended platform surface

The OSB12 comes in 2 versions : with RBD (Relay Break Detection) system or simple (without).

Both versions have the same base and top, provid-ing an affordable and evolutive solution.
A basic system can be upgraded later to a RBD system.

The footrest can be freely adjusted in length, or disassembled with standard tools.

The OSB12 comes in 2 versions : with RBD (Relay Break Detection) system or simple (without).

Both versions have the same base and top, provid-ing an affordable and evolutive solution.
A basic system can be upgraded later to a RBD system.

The footrest can be freely adjusted in length, or disassembled with standard tools.


Article number:    3454.951 (with RBD)

3454.961 (simple)

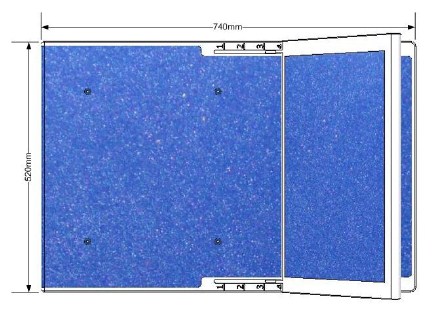

Dimensions length x width: 740 x 520 mm

Material:              Fberglass

Weight:                21.2 kg (with RBD)

         19.5 kg (simple)

RBD contacts:     Normally Open. , max. 100 mA / 12 V

RBD connection: Cable with 2x banana plugs

Certifications:      RoHS compliant, FINA approved

DOCM AQ OSB12swimmingStartingPlatform 0513 EN Page 2 Image 0003

simple
set of 6: 3454.956 3454.966
set of 8: 3454.958 3454.968
set of 10: 3454.960 3454.970
Download an information sheet. pdfdownload-628
