Lap Counter - 3-sided
|
|
| 0-199 laps | 0-999 laps | |
| Article number : | 3442.911 | 3442.910 |
| Display faces dimensions : | 590 x 445 mm (3 sided) | 720 x 475 mm (3 sided) |
| Housing dimensions : | 650 x 750 x 510 mm | 762 x 880 x 520 mm |
| Weight (without support) : | 16.9 kg | 21.3 kg |
| Weight (with support) : | 20.8 kg | 25.2 kg |
Common specifications for 0-199 and 0-999 models
| Height with support : | 1800 to 2500 mm |
| Digit height : | 26 cm |
| Viewing distance : | up to 130 m |
| Viewing angle : | 110° by side |
| Power supply : | 100-240 VAC, 50/60 Hz |
| Power consumption : | 150 VA (max.) |
| Data communication : | RS422 |
| Data connection : | Tuchel 7 poles female |
| Operating temperature : | -10 to +50°C |
| Storage temperature : | -20 to +80°C |
| Relative humidity : | 80% (non-condensing) |
| Bell fixing : | 3x hooks, female thread |
| Protection : | IP54 (indoor and outdoor use, rain and sun proof) |
| Certification : |  and  RoHS compliant |
| Dimensions : | 160 x 95 x 31 mm |  |
| Cable length : | ~ 3 m | |
| Weight : | 0.5 kg | |
| Operating temperature : | 0 to +50°C | |
| Storage temperature : | -30 to +85°C | |
| Display type : | 2 x 16 characters LCD | |
| Keypad : | 20 keys | |
| Certification : | and RoHS compliant |
"Last Lap" bell with SWISS TIMING branding
| Article number : | 3442.930 |  |
| Weight : | 2.6 kg |
Download an information sheet:

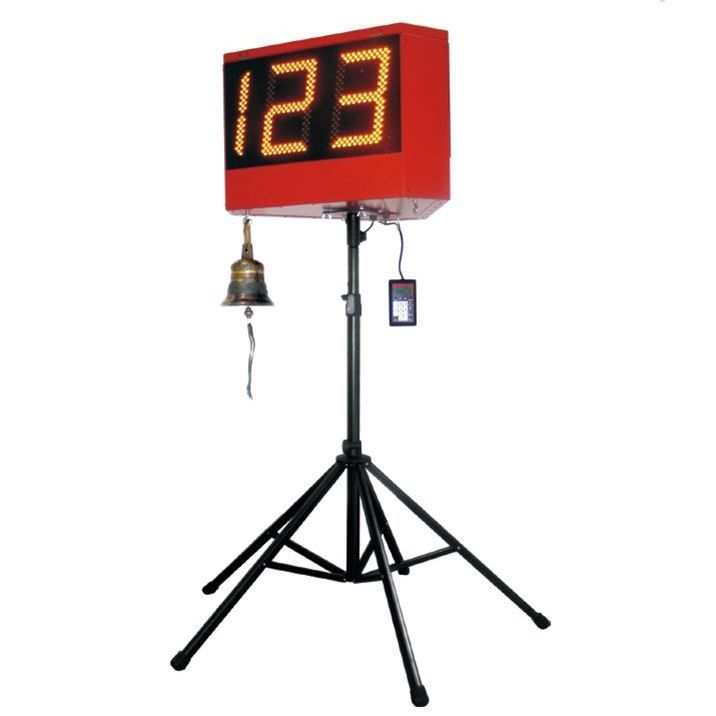

This LAP COUNTER features a modern design with 3 faces, each showing 3 digits, and provides the ability to display 0 to 199 or 999 depending on the model. This makes the display visible from almost 360 degrees, and at distances of up to 130 meters. Each digit is composed of 150 amber LEDs, the luminosity of which automatically adjusts to ambient light conditions thanks to an integrated sensor.
An ergonomically designed electronic controller with a 3 metre long cable, allows the operator to move in order to stay closer to the action.
This interface provides access, thanks to its keypad and LCD, to various integrated programs, and to the laps countdown commands in a very simple and intuitive way.
The LAP COUNTER is provided with a 5 legged tubular support, adjustable in height and ensuring great stability. It is equipped with 3 hooks, allowing to hang the optional "Last Lap" bell, especially cast with SWISS TIMING branding.
