Use: Indoor
Transmission: Radio (868 MHz)
Readability: 110m, angle >160°
Dimensions : 2000 x 1310 x 90mm
Weight: 82 kg
Power supply: 230V / 2 phases 230V / 50-60Hz Max power consumed: 1016 W
Integrated Horn: 116dB à 1m
Pitch p3.9, black LED SMD 3in1
Resolution 512 x 256
Brightness: 900 nits, 16 384 grayscale per color
Download brochure from

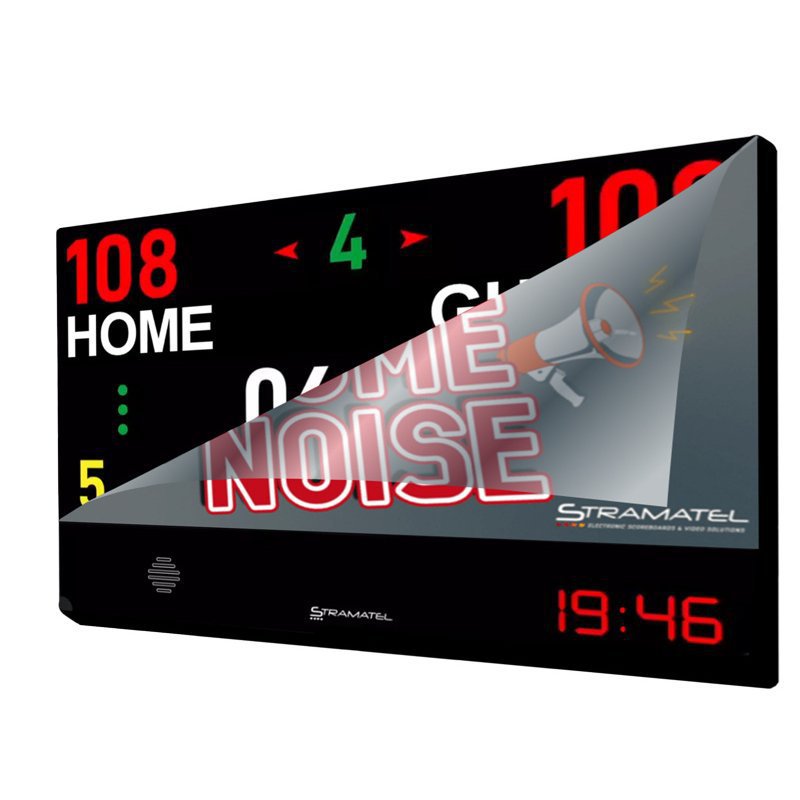

Introducing the first Wireless LED Scoreboard – this new system is the beginning of a new era of scoreboards and is the first to be supplied to the UK market.
The standout difference with this Scoreboard is that you get a two-in-one Scoreboard and Video Screen, that is designed for Leisure Centres, Schools, Universities and Colleges.
You can connect the 552 Wireless Video Screen from any device, load your media to create your own in-game playlist, add advertising for your sponsors and start your game and control everything all with one console.
Video
https://youtu.be/Qv8onZPh5q8?si=rtoX7LSh77FBKJXT
SUPPORTED SPORTS
Basketball - Handball - Volleyball - Tennis - Table Tennis - Badminton - Futsal - Rink Hockey - In-Line Hockey - Ice Hockey – Uni-hockey / Floorball - Netball – Boxing
COMPOSITION
- 1 full-colour LED video screen- 1 control console (Android compatible) with a carrying case
- 1 start/stop timer console
- 1 keyboard
FEATURES
- Cooperates with all video and image format- Data transmission for TV broadcasting
- Connection with sport hall sound system - Horn sound amplifier
- Electric light to be installed behind the backboard
- Attack timer with or without main time repeater
- SL Stream Box - Interface that can be connected to the console that allows the broadcast games with automatic score inlay
- Built-in clock
- Built-in buzzer
- WI-FI connection directly from any device
- In compliance with the latest FIBA rules
