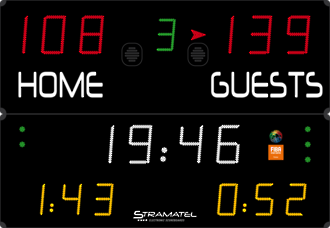

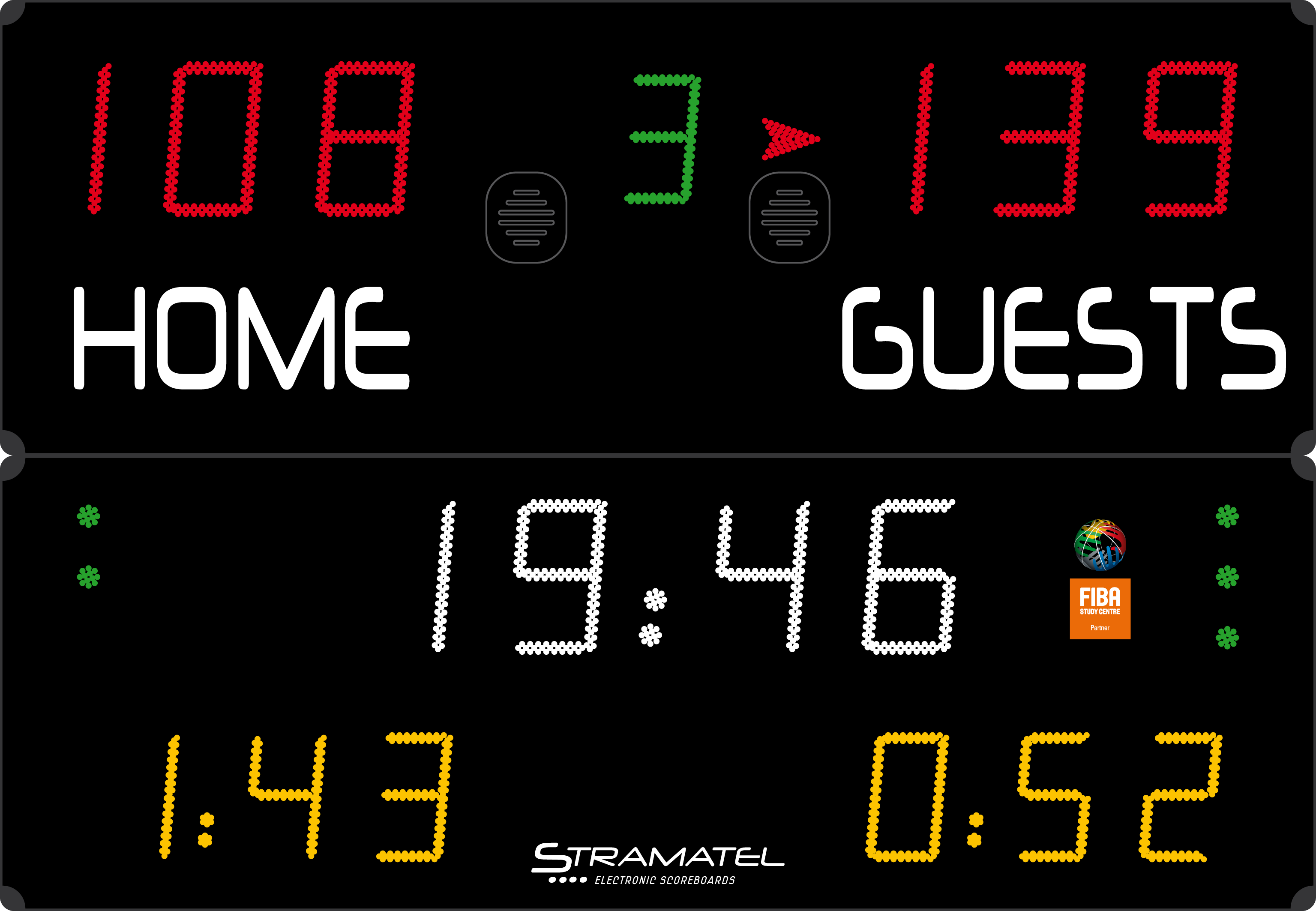

452 MF 7000

Model

452MF7000                     With Stickers for Home and Guest

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

• 1 scoreboard made of 4 modules
• 1 control consoles,
• 1 start/stop timer console
• 1 carrying case for control consoles
• 1 mains cables
• Junction box and transmission cables (for cable controlled version)
• Operating and installation instructions
• (Smartphone not included)

Description

Use:	Indoor
Transmission:	Radio (868 MHz) or cable
Readability:	160m, angle >160°
Dimensions:	2600 x 1800 x 90mm
Weight:	75 kg
Power supply:	230V / 50-60Hz Power consumed: 167 VA
Protection:	Unbreakable mat polycarbonate front face (DIN 18032-3)
Horn	2x integrated horns, total = 119dB at 1m
Mains cable (supplied)	1x25 m – Type: 230V, 3G, 0.75 mm
Cable controlled:	For cable controlled models or radio controlled models with cable set: Junction Box + 50 m transmission cable (scoreboard/junction box) – Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)
