SC24Eco

SC 24 Eco

SC 24 Eco
Multisport - Shot Clocks and Peripherals
Enquire

Model

SC 24 Eco

BASKET BALL

Composition

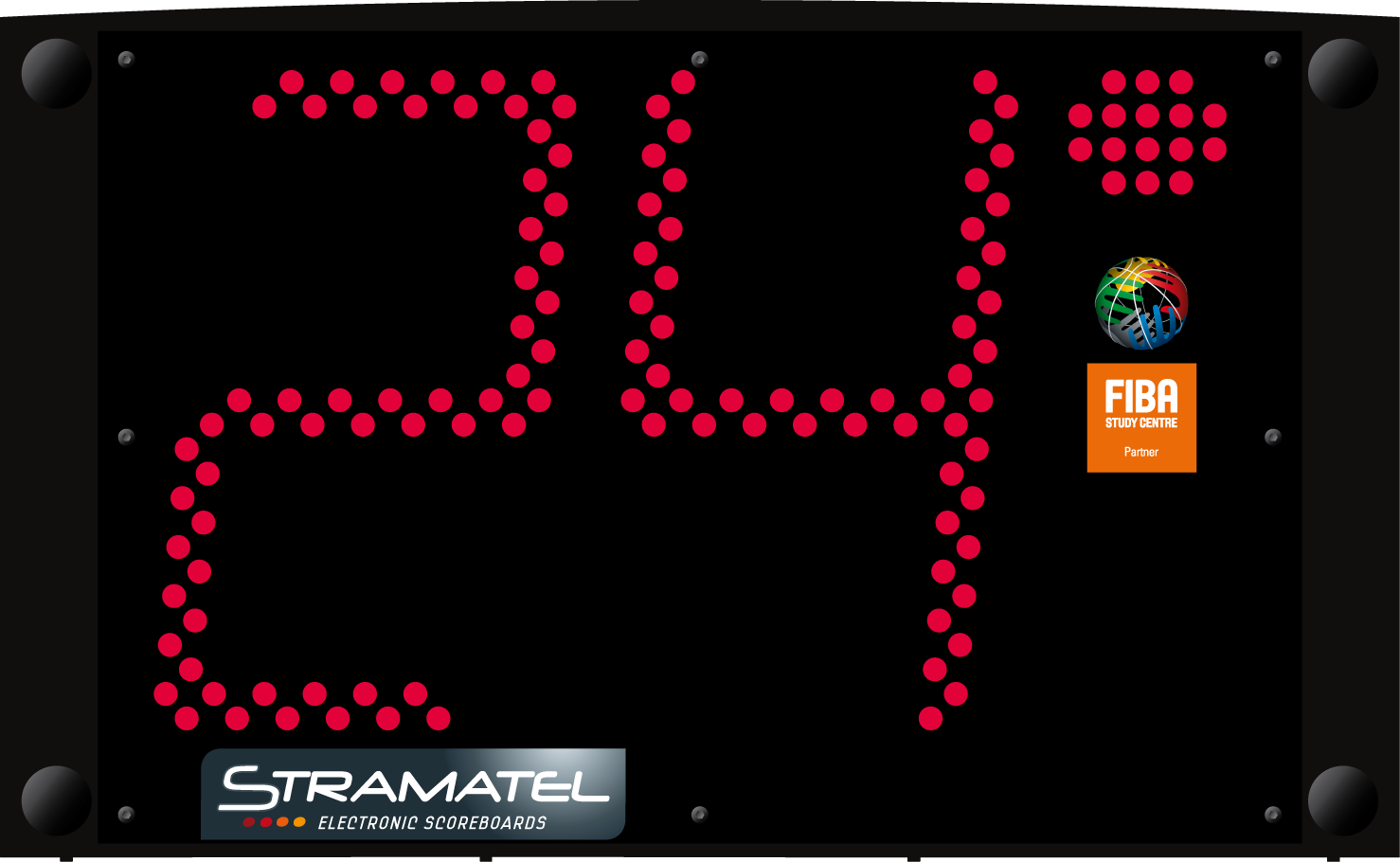

  • 2 electronic display boards
  • 1 control console
  • 1 horn
  • 1 carrying case for control console
  • 2 main cables
  • 2 polycarbonate stands (Floor installation)
  • Operating and installation instructions

Description

Use: Indoor
Transmission: Cable - work independently from main scoreboard or connected with a portable STRAMATEL scoreboard Model MTop
Readability: 100m, angle >160°
Dimensions: 500 x 300 x 65mm
Weight: 2.5 kg per unit
Power supply: 230V / 50-60Hz 0,2A
Power consumed: 40 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032-3)
External Horn: 96dB at 1m
Transmission cable: 25m + 35m - Type:phone cable, 4 wires, 0.60mm
2 + 3m - DIN/DIN (connection Horn / Control console)
Mains cable (supplied): 1 x 2 m - Type: 230V, 3G, 0.75 mm
  • Display Functions
  • Control Consoles
  • Options
  • Brochure
SC24E - 2 - Displ
SC24E - 3 - Control
SC24E - 4 - Options
Download the SC 24 Eco Brochure pdfdownload-628
