SC24A

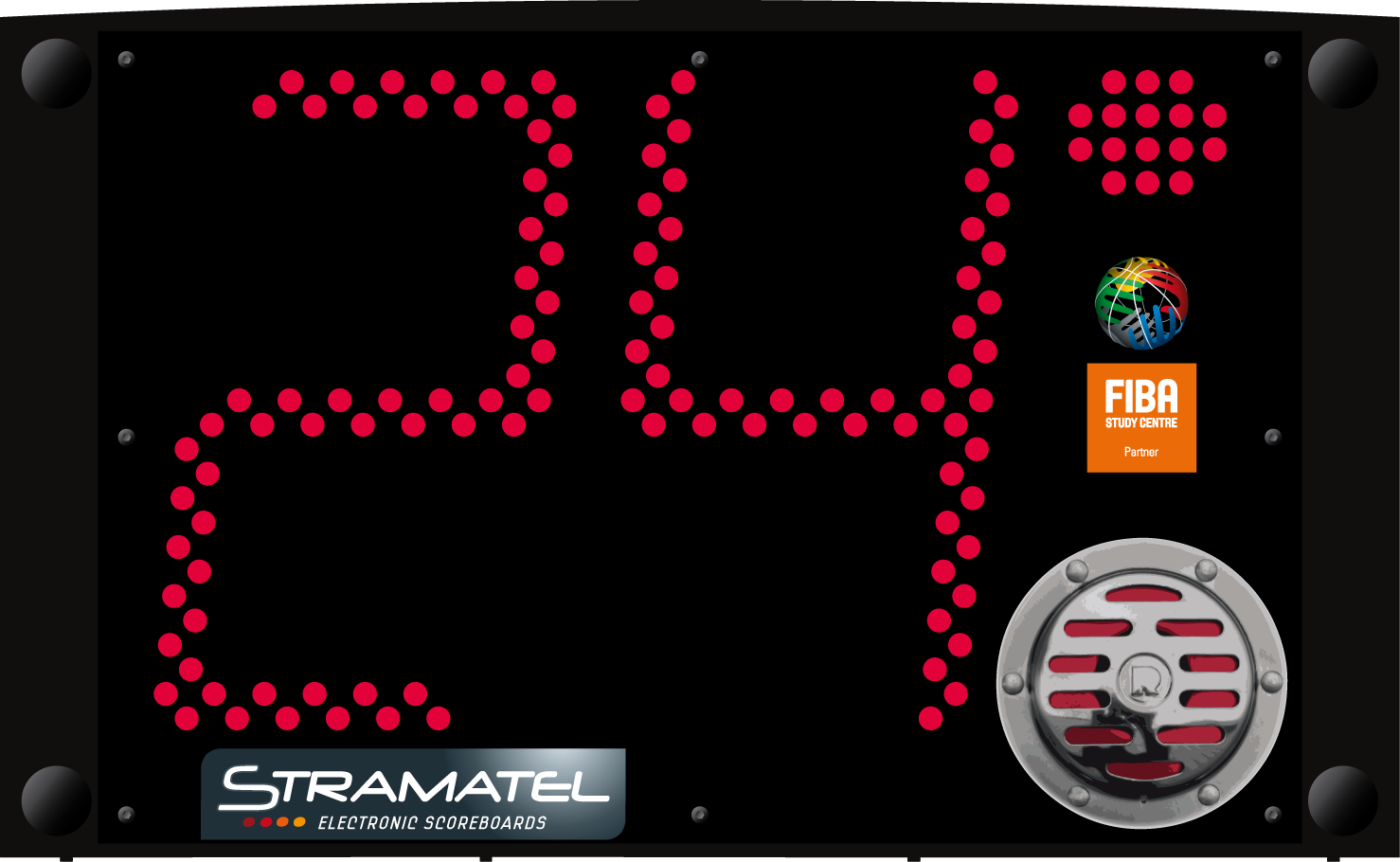

SC 24 Autonom

Multisport - Shot Clocks and Peripherals
Enquire

Model

SC24 Autonom

BASKET BALL

Composition

  • 2 electronic display boards
  • 1 control console
  • 1 carrying case for control console
  • 2 mains cable
  • 2 polycarbonate stands (Floor installation)
  • Operating and installation instructions

Description

Use: Indoor
Transmission: Radio (868 MHz) or Cable - works independently from main scoreboard
Readability: 100m, angle >160°
Dimensions: 500 x 300 x 65mm
Weight: 2.5 kg per unit
Power supply: 230V / 50-60Hz
Power consumed: 30 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032-3)
Integrated Horn: 96dB at 1m
Mains cable: 2x25 m - Type: 230V, 3G, 0.75 mm
Transmission cable: for cable controlled model
  • Display Functions
  • Control Console
  • Options
  • Brochure
SC24A - 2 - Displ
SC24A - 3 - Control
SC24A - 4 - Options
Download the SC24 Autonom Brochure pdfdownload-628
