452ME800

452 ME 800

Multisport - Eco
Enquire

Model

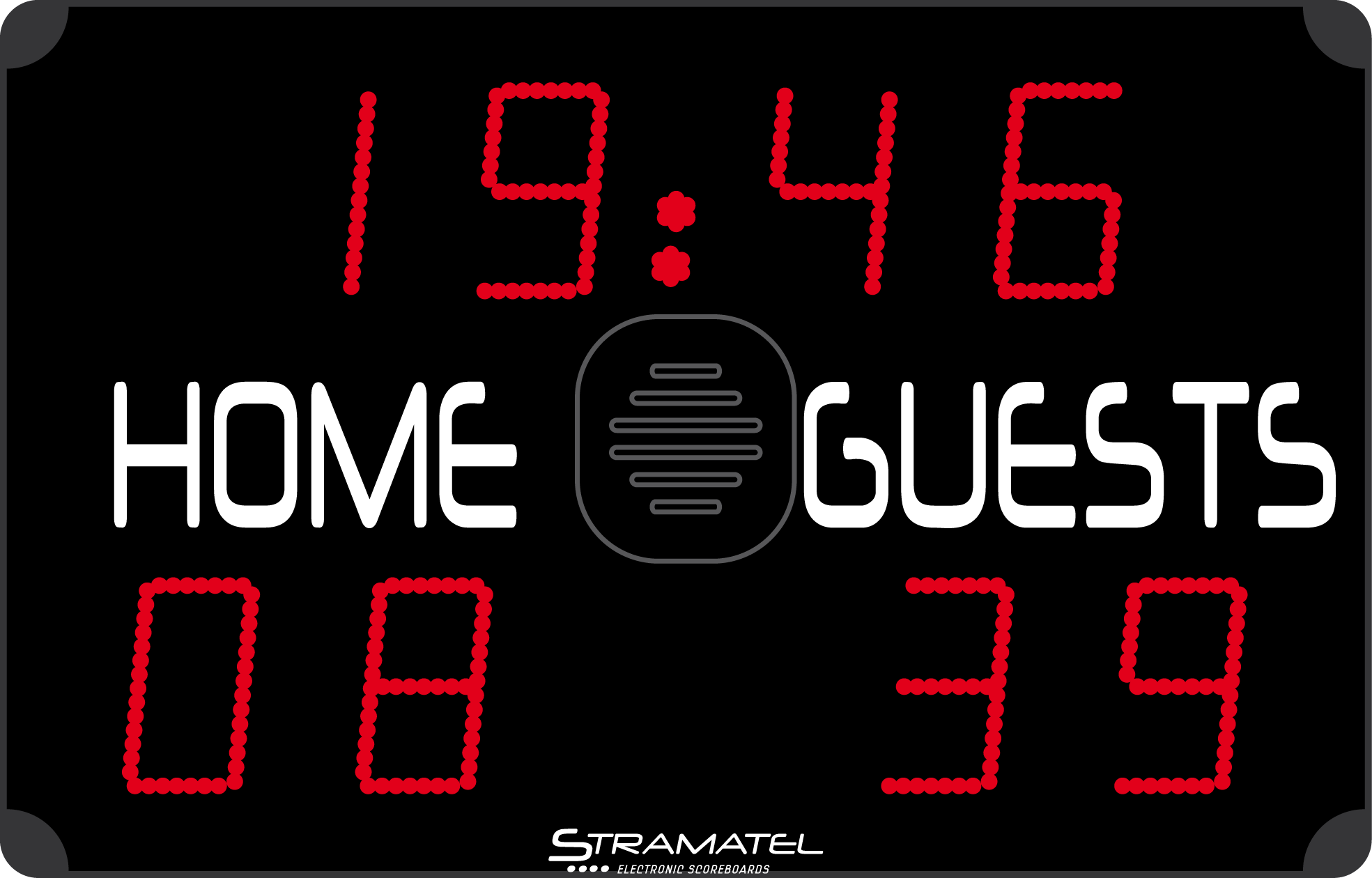

452ME800                    With Home / Guests stickers

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

  • 1 scoreboard
  • 1 control console (Android compatible)
  • 1 carrying case for control consoles
  • 1 mains cable
  • Junction box and transmission cables (for cable controlled version)
  • Operating and installation instructions
  • (Smartphone not included)

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 1000 x 640 x 90mm
Weight: 14 kg
Power supply: 230V / 50-60Hz Power consumed: 60 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn 116dB at 1m
Mains cable (supplied) 5 m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)



  • Display Functions

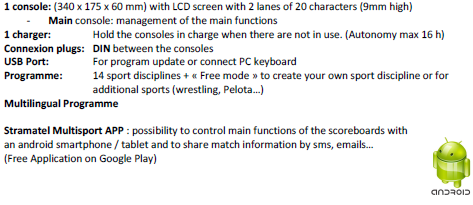

  • Control Console

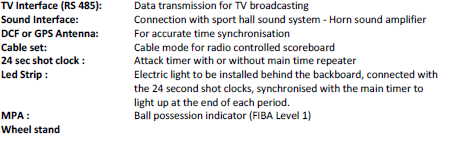

  • Options
  • Brochure
452ME800 - 2 - Displ
452ME800 - 3 - Control
452ME800 - 4 - Options
Download the 452 ME 800 Brochure pdfdownload-628
