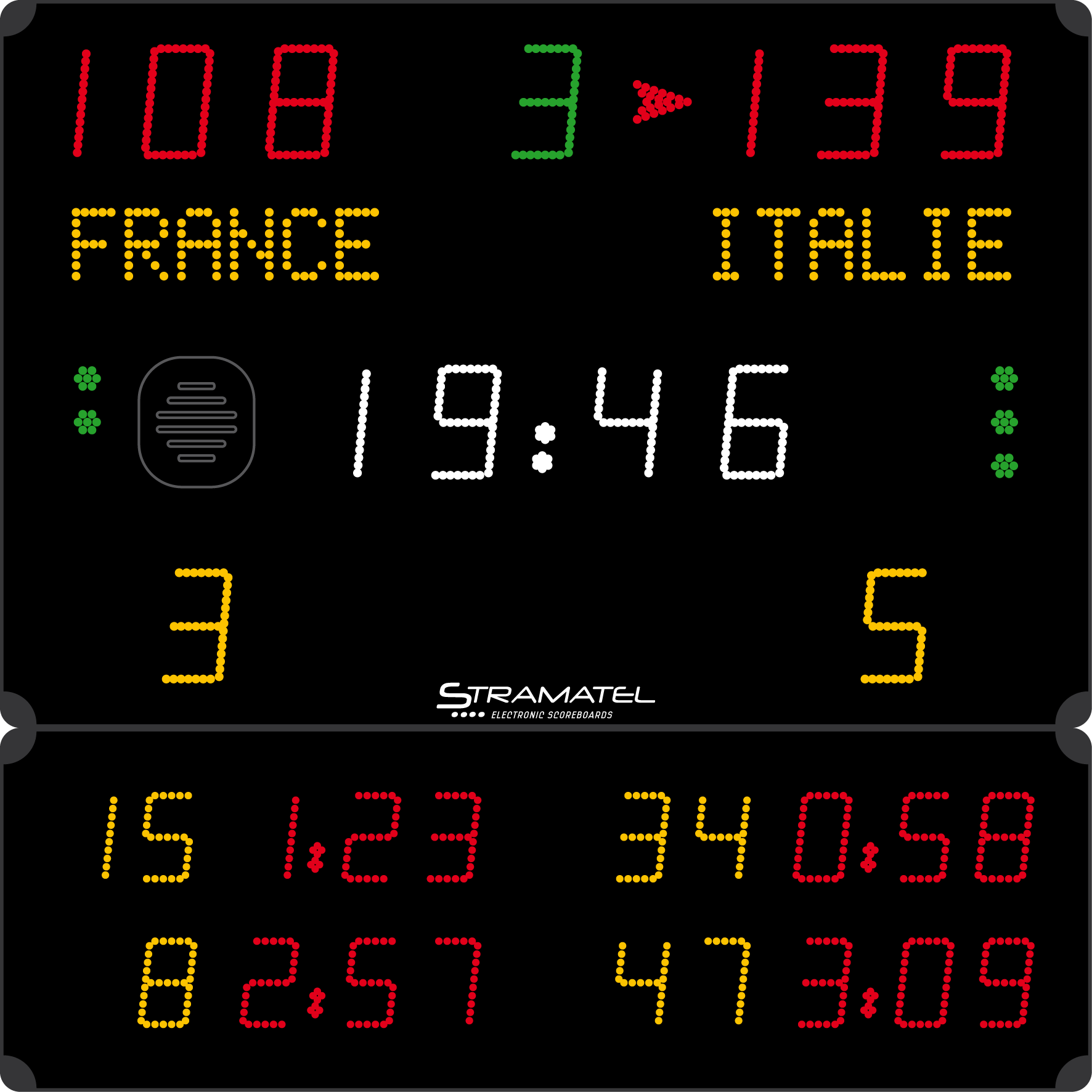

452MS3103

452 MS 3103

Multisport - Compact
Enquire

Model

452MS3103                     With Programmable Names

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

  • 1 scoreboard made of 2 modules
  • 1 control console, 1 start/stop timer console
  • 1 Keyboard
  • 1 carrying case for control consoles
  • 1 mains cable
  • Junction box and transmission cables (for cable controlled version)
  • Operating and installation instructions
  • (Smartphone not included)

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 1500 x 1500 x 90mm
Weight: 32 kg
Power supply: 230V / 50-60Hz Power consumed: 170 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Horn 1x integrated horns, total = 116dB at 1m
Mains cable (supplied) 25 m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)



  • Display Functions
  • Control Console
  • Options
  • Brochure

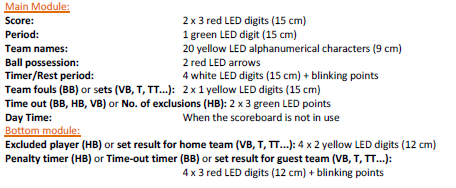

452MS3103 - 2 - Displ

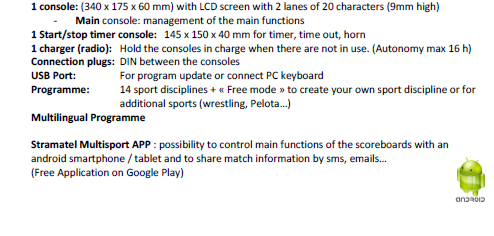

452MS3103 - 3 - Control

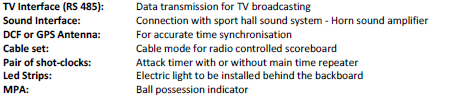

452MS3103 - 4 - Options
Download the 452 MS 3103 Brochure pdfdownload-628
