PICCOLO

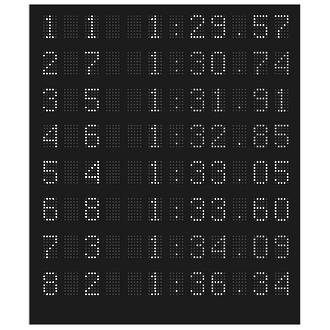

OMEGA PICCOLO White - Swimming Scoreboard

Enquire
For the public, the excitement of a competition is greatly enhanced by the instant display of the results, and ranking of the different athletes taking part in the race.

The spectators feel far more involved in an event if they know, at the same time as the officials, the results and distances separating the competitors.

PICCOLO, a LED scoreboard for indoor swimming competitions, has been designed in that spirit and meets this very specific need; it is ideally positioned for all swimming pool operators who want to display the results of the lanes but are looking for low initial and maintenance costs.

PICCOLO can also be installed as a result repeater in zones where spectators cannot see the main panel or in the warm-up rooms or restaurants of multisport facilities.

Designed for indoor use, PICCOLO is based on high efficiency amber LEDs, which guarantees clear and precise visibility.

The digits are 10 cm high, allowing a read distance of up to 50 metres.
  • Top features
  • Features with optional units
  • Specifications
  • Options
  • Full compatibility with various Swiss Timing equipment
  • Compatible with UNT, Quantum and OSM-6 protocols
  • Compatible with PowerTime (TOP - 8 Swimming)
  • Viewing distance of up to 50 m
  • Excellent money value
  • Low maintenance costs
  • Also available in Bluetooth version
  • Can be used as secondary display
PICCOLO with an optional Quantum unit
Provides a real-time display of:
  • Running time
  • Reaction times at start
  • All intermediate times with ranking
  • Final times
  • Results list with ranking
PICCOLO with an optional POWERTIME II
For swimming events management, the POWERTIME unit is loaded with the "TOP-8" dedicated software.

PICCOLO with an optional Scan’O’Vision system The STAR photo finish camera allows for 1/1000th second video measurements at the finish line.

Quantum to Piccolo
1906.050 Cable TU 7 pM - SubD 9pM - 50m winder
1906.100 Cable TU 7 pM - SubD 9pM - 100m winder

Calypso Water-polo Controller to Piccolo
1871.050 Cable TU 7 pM - TU 7 pM - 50m winder
1871.100 Cable TU 7 pM - TU 7 pM - 100m winder
Article number : 3402.920
Dimensions : 1360 x 1150 x 90 mm
Weight : 28.0 kg
Housing : aluminium
Fixing : can be mounted on a wall or on a structure
Display type : 8 lines of 12 digits, 40 white LEDs each
Digit height : 10 cm
Visibility distance : 50 m
Horizontal viewing angle : 140°
Power supply : 110-240 VAC, 50 Hz
Power consumption : 150 VA (maximum) 30 VA (typical)
Data communication : RS422
Connections : Tuchel 7pFT
Operating temperature : 0 to 50°C
Storage temperature : -30 to 70°C
Protection : IP54 outdoor
Certification : ce logo and rohs RoHS compliant
  • 3402.920BT OMEGA PICCOLO Scoreboard 8 lines (BLUETOOTH)
