Swiss Timing OCP5 TouchPad

Swimming touchpad for reliable results

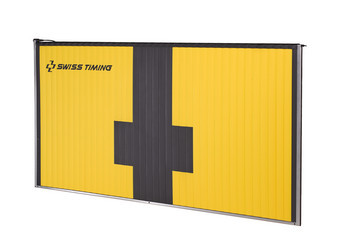

The OCP5 touchpad consists of a high-grade stainless steel frame, supporting interlinked individual PVC slats. The slats are hard-wearing, nonabrasive and provide an excellent non-slip surface. The touchpad is designed for sustained heavy use. Reliability and durability are unaffected by hard water or chemical corrosion.

The contact strips within the pad will close and thus give a timing signal, when 2 to 3 kg of localised pressure is applied to any point on the surface of the pad. The clever design of the touchpad is such that whilst it is highly sensitive to localised impact, it will not react to an overall change in surface
pressure, thus eliminating false impulses from waves and wash.

The integration of carefully selected high quality materials and leading edge technology guarantee long life and make the OCP5 the reference for swimming timing equipment. Repairs may be carried out by the client, on site, meaning that no pads need be returned for repair.

A specially designed storage and transport trolley is available as a recommended option, to accommodate up to ten full height OCP5 touchpads.

Top features
Specifications
Options
Brochure

Four sizes
Easy maintenance
Non slip
Non abrasive
Non corrosive
Low weight
High sensitivity
Easy storage
Easy transport
FINA recommended

	REFERENCE NO.	LENGTH (mm)	HEIGHT (mm)	LANE WIDTH (mm)	DIST. 'D' (mm)	WEIGHT (kg)
OCP5 190/90	2924.005	1908	905	2000	1885	12.8
6 lanes kit	2924.787*
8 lanes kit	2924.788*
10 lanes kit	2924.789*

OCP5 240/90 (FINA)	2924.003	2403	905	2500	2380	16.3
6 lanes kit	2924.797*
8 lanes kit	2924.798*
10 lanes kit	2924.799*

OCP5 150/60	2924.000	1503	605	1600	1300	7.3
6 lanes kit	2924.767*
8 lanes kit	2924.768*
10 lanes kit	2924.769*

OCPF 200/60 (AAU-NCAA)	2924.001	2003	605	2100	1800	10.2
6 lanes kit	2924.777*
8 lanes kit	2924.778*
10 lanes kit	2924.779*

Note: Sets (*) are supplied with spare maintenance material, mounting material, a dynamometer and a tester to check the pads. Single units are supplied without mounting material. In lanes less than 2.0m wide, touchpads are "gutter" mounted.

All touchpads are

and

RoHS compliant.

	Harness set for mobile installations: 3409.914, set for 4 lanes 3409.916, set for 6 lanes 3409.918, set for 8 lanes 3409.910, set for 10 lanes

	Trolley: 2924.903, for up to 10 touchpads

	Touchpads cover protection: 2924.904 This PVC protective cover is designed to preserve the touchpads during storage periods. For up to 10 touchpads sized 190 x 90 cm or 240 x 90 cm. To be used with the storage trolley.
